Choose the Best Steel for CNC Machining

You may have noticed how versatile CNC machining is for producing your CNC steel part. The efficiency of the manufacturing process and the quality and functionality of a machined component are greatly influenced by the selection of the proper machining steel.

It could be tough to select the best option from the numerous choices. In order to provide you with some good options, this post will discuss the properties you must take into account for your steel machined item as well as the best steel for CNC  steel machining.

Machining Steel is Different From Other Machining Materials

When it comes to strength and durability, steel is a strong choice. Steel is an alloy made of carbon and iron, though other elements are frequently added to give the metals certain qualities. As a result, you have a wide range of alternatives for CNC steel machining and different types of steel will behave differently. The World Steel Association estimates that there are about 3,500 different steel grades.

each grade has different strength and corrosion resistance properties. Thus, before selecting any machining steel, you should consider the following questions:

  • What purposes will the finished product be put to?
  • Which types of dimensional tolerances are necessary?
  • Does it have to be temperature- and corrosion-resistant?
  • How much wear and/or operational stress is it required to be able to endure?

Microstructure, grain size, heat treatment, chemical composition, fabrication, hardness, yield strength, and tensile strength are the eight parameters that affect the steel machining. But, carbon plays major role for developing strength and durability the required property for CNC steel machining.

Most Common Steel for Machining

 Carbon steel

The carbon content is crucial in carbon steel. Carbon steel shows high strength and  high wear resistance. Thus, the best CNC steel machining  rate is produced by carbon with a concentration of 0.2-0.3%. Ductile steel with unbreakable chips is produced at concentrations lower than 0.1%. The CNC steel machining rate gradually declines as the carbon concentration rises by 0.4–1% as it becomes more brittle for steel machining.

When not heat-treated to high tensile or wear-resistant levels, carbon steel is typically simple to process. These levels are often impossible to machine using conventional machining techniques and can reach 60 Rc.

When trying to create fine surface finishes on carbon steel, challenges can appear. As a rule, the material is “soft,” necessitating the use of correct cutting techniques to preserve precise dimensional tolerances and surface finishes.

The most common grade for CNC carbon steel machining

  • SAE1045 medium carbon steel
  • AISI1018 mild carbon steel
  • SAE1044 free machining medium carbon steel

Alloy Steel

Alloy Steel has been alloyed with various elements in total amounts ranging from 1.0% to 50% by weight to improve its quality for CNC steel parts. The two types of alloy steels are low-alloy steels and high-alloy steels. The difference between the two is arbitrary in certain ways.

Popular free-machining alloy (FMA) steel alloy 1215 is perfect for products that need extensive CNC machining steel and a bright finish. Although it responds well to minor bending, threading, and nibbing, it is not the best material for parts that could experience very high levels of fatigue stress.

The most common grade for alloy  CNC steel machining

  • AISI 4340
  • 42CrMo4
  • AISI 4130

Stainless Steel

In comparison to other types of carbon and alloy steel, stainless steel is a special and distinctive CNC machining steel. Stainless steel presents major difficulties for micro-manufacturing techniques.

However, it is increasingly being used to create micro components. It is necessary to change the composition of stainless steel in order to improve its machinability.

Austenitic stainless steels, including grades 304 (1.4301) and 316(1.4401), are the most popular and, as a result, are employed for steel machining the most. These are distinguished by their rapid work hardening rates and mediocre chip-breaking capabilities when being machined CNC steel.

The most common grade for CNC steel machining

  • 303 and 303 Se stainless steel
  • 430F stainless steel
  • 416 stainless steel
  • 420 F stainless steel

Tool steel

In general, steels in this category have extremely low CNC steel machining ratings due to either high carbon content (over 1%) or extra alloying elements (above 1%) in high concentrations.

Although, The “H series” of tool steels include steel H13. They fall under the category of chrome hot-work steels and have a medium carbon percentage (about 0.4%) and a 5% chromium concentration.

Thus, CNC steel machining ratings for tool steels in this series (H10-H19) range from 50 to 60 percent. They are utilized when better strength and/or hardenability are required but cannot be obtained with low alloy steel since they are the category of tool steels that can be the simplest steel machining.

A2 is a great option for dies with intricate designs since it can be used for CNC steel machining very readily in the annealed condition and, like other air-hardening tool steels, shows little distortion after hardening.

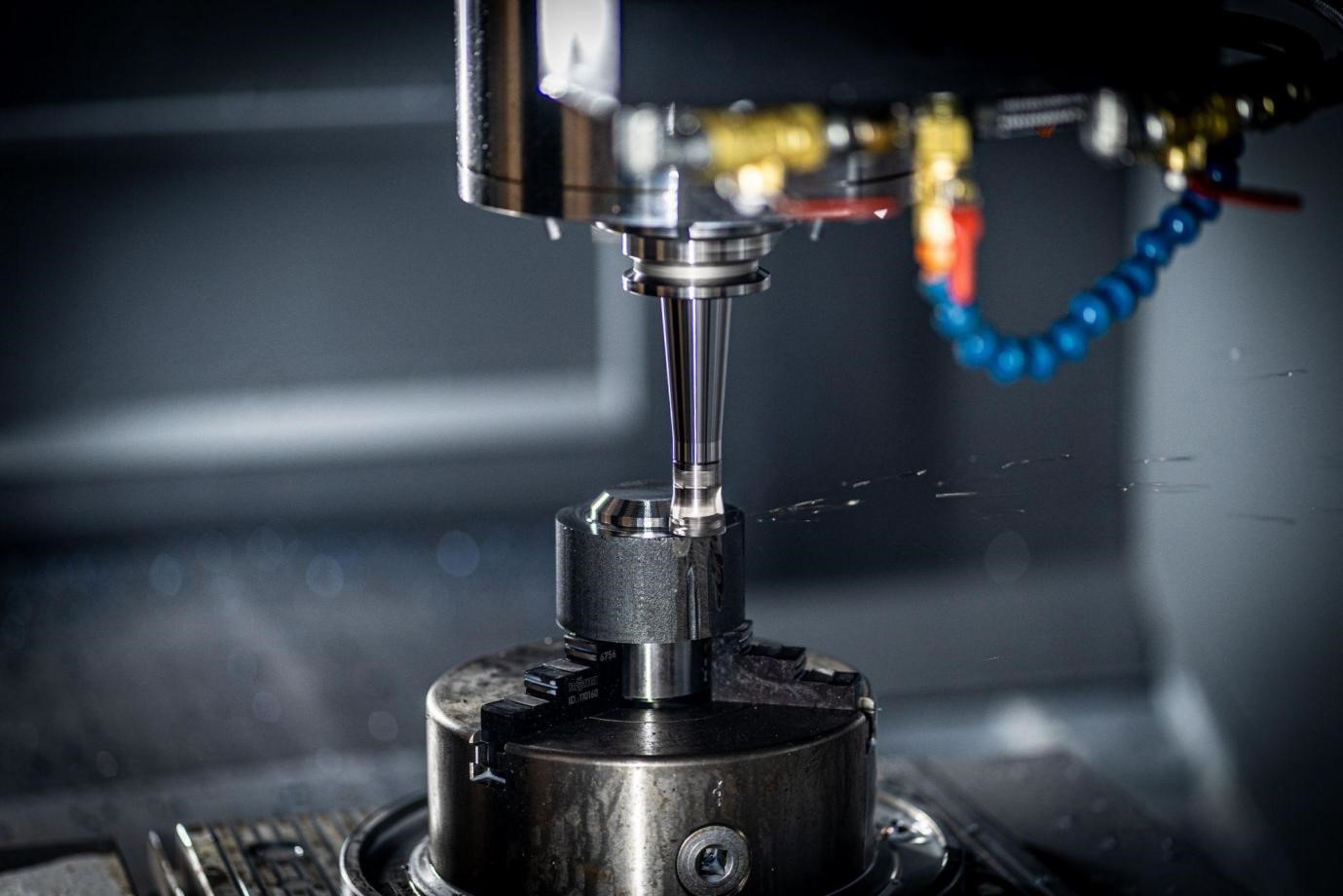

Steel machining



Conclusion

Overall, CNC steel is a very adaptable substance, making it one of the metals we use the most frequently in our daily lives. There are an infinite number of steel grades with usable qualities due to the infinite number of alloys that are possible. And to make sure you receive a lead time that works for you, weigh the qualities you require against the CNC steel machinability when developing your CNC steel parts.
